Pure pursuit control algorithm

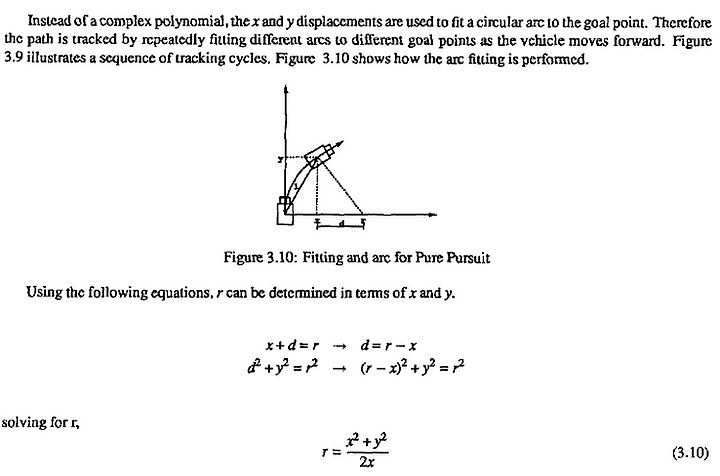

Pure pursuit is a tracking algorithm developed in Navlab in CMU.

Video clips

 MATLAB CODE

 pure pursuit code

function pp = demo_pure_pursuit

clc;

clear all;

close all;

% 새로 실험을 할지 (0), 기존 실험을 이어할지 (1) 여부

load_pp = 0;

%% initialize variables

if load_pp == 0

    % 새롭게 실험

    delete('pics/*.png');

    pp.STEP_TIME = 0.1;

    pp.SCALE_P = 1.0;

    pp.SCALE_V = 8.0;

    pp.WP_DIST = 20.0;     % 현재 pursuit까지 얼마나 가까우면 종료할지

    pp.FOLLOW_DIST = 40.0; % 현재 wp까지 얼마나 가까우면 종료할지

    pp.X_OFF = 0;

    pp.Y_OFF = 0;

    pp.CRUMB_SZ = 1000;

    pp.NUM_WP = 5;

    pp.X = 1;

    pp.Y = 2;

    pp.DIM = 2;



    pp.valmax = 20/100; % <== Max steering angle

    pp.isStart = false;

    pp.sim_counter = 0;

    pp.sim_t = 0.0;

    pp.sim_v = 0.0;    % velocity

    pp.sim_d = 0.0;    % steering

    % current point

    pp.sim_xp = 0.0;

    pp.sim_yp = 0.0;

    % current velocity

    pp.sim_xv = 0.0;

    pp.sim_yv = 0.0;

    % track points

    pp.steer_fx = 0.0;

    pp.steer_fy = 0.0;

    % double[][] way_pts = {{300.0,500.0},{100.0, 500.0},{100.0,100.0}, {500.0,100.0},{500.0, 500.0}};

    pp.way_pts = [300.0, 500.0 ; 100.0, 500.0 ; 100.0, 100.0 ; 500.0, 100.0 ; 500.0, 500.0];

    pp.cur_way_pt = 1; % current waypoint index

    % double[][] crumbs = new double[crumb_sz][dim];

    pp.crumbs = zeros(pp.CRUMB_SZ, pp.DIM);

    pp.crumb_idx = 1;

    pp = initSim(pp);

    pp.isStart = 1;



    loop.iter = 0;

    loop.maxiter = 1200;

else

    % 기존 실험을 불러온다.

    load('pp_loop.mat');

end

%% main loop here

while 1

    clf;  fig_pp = figure(1);   hold on;

    pp = draw(pp);

    title(sprintf('Pure pursuit control [%d]', loop.iter));

    hold off;



    % save figure every 10 times

    if rem(loop.iter , 10) == 0

        set(fig_pp,'PaperPositionMode','auto')

        print (fig_pp , '-dpng', ['pics/fig_pp_', num2str(loop.iter, '%03d'), '.png']) ;

        % save current status

        save('pp_loop.mat', 'pp', 'loop');

    end



    % 종료 조건

    loop.iter = loop.iter + 1;

    % fprintf('[%d] \n', loop.iter);

    if loop.iter >= loop.maxiter

        break;

    end

end

%% child functions

function ret = random(fr, to)

ret = fr + (to-fr)*rand();

function pp = setPosition(pp, x, y)

pp.sim_xp = x;

pp.sim_yp = y;

function pp = setVelocity(pp, val)

pp.sim_v = val;

function pp = setSteering(pp, val)

pp.sim_d = val;

function pp = changeSteeringBy(pp, delta)

pp.sim_d = pp.sim_d + delta;

function pp = setFollow(pp, x, y)

pp.steer_fx = x;

pp.steer_fy = y;

function ret = getCurrentWaypoint(pp)

ret = pp.cur_way_pt;

function ret = getPreviousWaypoint(pp)

if pp.cur_way_pt == 1

    pwp = pp.NUM_WP;

else

    pwp = pp.cur_way_pt - 1;

end

ret =  pwp;

function pp = setup(pp)

pp = initsim(pp);

function pp = draw(pp)

if (pp.isStart)

    pp = updateSim(pp);

    pp = updateSteering(pp, pp.sim_xp, pp.sim_yp, pp.sim_d);

    pp = updateWaypoint(pp, pp.sim_xp, pp.sim_yp);

    pp = updatePursuit(pp, pp.sim_xp, pp.sim_yp);

    pp = updateCrumbs(pp, pp.sim_xp, pp.sim_yp);

    pp = updateRover(pp);

end

pp = drawCrumbs(pp);

pp = drawWayPoints(pp);

pp = drawRover(pp);

pp = drawPursuit(pp);

function pp = initSim(pp)

pp.cur_way_pt = 1;

pp = setFollow(pp, 280.0, 500);

pp = setPosition(pp, 300.0, 400.0);

pp = setVelocity(pp, 4); % <== 이동 속도를 정한다 !

pp = setSteering(pp, 4);

pp = updateRover(pp);

function pp = updateSim(pp)

pp.sim_counter = pp.sim_counter + 1;

pp.sim_t = pp.sim_t + pp.STEP_TIME;

if rem(pp.sim_counter, 20) == 0

    % error every 20 times

    pp.sim_d = pp.sim_d + random(-0.2, 0.2);

    pp.sim_xp = pp.sim_xp + random(-1.5, 1.5);

    pp.sim_yp = pp.sim_yp + random(-1.5, 1.5);

end



function pp = updateSteering(pp, x, y, dir)

fdx = (x-pp.steer_fx);

fdy = (y-pp.steer_fy);

fdist = calcDist(pp, fdx, fdy);

cdir = cos(dir);

sdir = sin(dir);

xprod = (sdir*fdx - cdir*fdy)/fdist;

% if xprod < -0.1

%     val = -0.06;

% elseif xprod > 0.1

%     val = +0.06;

% else

%     val = 0;

% end

val = minmax_th(xprod, -pp.valmax, pp.valmax);

pp = changeSteeringBy(pp, val);

% fprintf('steering val: %.4f \n', val);

function pp = updateWaypoint(pp, x, y)

cwpx = pp.way_pts(pp.cur_way_pt, pp.X);

cwpy = pp.way_pts(pp.cur_way_pt, pp.Y);

cdist = calcDist(pp, x-cwpx, y-cwpy);

if cdist < pp.WP_DIST

    pp.cur_way_pt = pp.cur_way_pt + 1;

end

if pp.cur_way_pt > pp.NUM_WP

    pp.cur_way_pt = 1;

end



% main pp function

function pp = updatePursuit(pp, x, y)

fdist = calcDist(pp, x-pp.steer_fx, y-pp.steer_fy);

if (fdist < pp.FOLLOW_DIST)

    cwp = getCurrentWaypoint(pp);

    pwp = getPreviousWaypoint(pp);

    % fprintf('cur wp: %d prev wp: %d \n', cwp, pwp);



    wpx = pp.way_pts(cwp, pp.X) - pp.way_pts(pwp, pp.X);

    wpy = pp.way_pts(cwp, pp.Y) - pp.way_pts(pwp, pp.Y);

    wpdist = calcDist(pp, wpx, wpy);



    cdist = calcDist(pp, x-pp.way_pts(cwp, pp.X), y-pp.way_pts(cwp, pp.Y));



    wp_ratio = (wpdist - cdist + pp.FOLLOW_DIST)/wpdist;

    if wp_ratio > 1.0

        wp_ratio = 1.0;

    end



    nx = pp.way_pts(pwp, pp.X) + wp_ratio*wpx;

    ny = pp.way_pts(pwp, pp.Y) + wp_ratio*wpy;

    pp = setFollow(pp, nx, ny);

end

function pp = updateCrumbs(pp, x, y)

if rem(pp.sim_counter, 3) == 0

    pp.crumbs(pp.crumb_idx, pp.X) = pp.sim_xp;

    pp.crumbs(pp.crumb_idx, pp.Y) = pp.sim_yp;

    pp.crumb_idx = pp.crumb_idx + 1;

    if (pp.crumb_idx >= pp.CRUMB_SZ)

        pp.crumb_idx = 1;

    end

end

% Update the position of the rover

function pp = updateRover(pp)

pp.sim_xv = pp.sim_v*cos(pp.sim_d);

pp.sim_yv = pp.sim_v*sin(pp.sim_d);

pp.sim_xp = pp.sim_xp + pp.sim_xv;

pp.sim_yp = pp.sim_yp + pp.sim_yv;

%%Draw stuffs

function pp = drawRover(pp)

x = calcDrawX(pp, pp.sim_xp);

y = calcDrawY(pp, pp.sim_yp);

xd = x + calcDrawV(pp, pp.sim_xv);

yd = y + calcDrawV(pp, pp.sim_yv);

filledCircle([x y], 10, 100, 'r');

plot([x xd], [y yd], 'b-');

text(50, 550, sprintf(' max steering: %.4f \n vel: %.4f', pp.valmax, pp.sim_v ) ...

    , 'BackgroundColor',[.3 .9 .7], 'FontSize', 7);

function pp = drawPursuit(pp)

% 현재 추종점을 그린다.

nx = calcDrawX(pp, pp.steer_fx);

ny = calcDrawY(pp, pp.steer_fy);

d = calcDraw(pp, pp.FOLLOW_DIST); % 각

filledCircle([nx ny], 5, 100, 'g');

nofilledCircle([nx ny], d, 100, 'g');

function pp = drawCrumbs(pp)

% stroke(100);

% for i=0; i<pp.CRUMB_SZ; i++

% for i = 1:pp.CRUMB_SZ

%     plot(pp.crumbs(i, pp.X), pp.crumbs(i, pp.Y), 'o-');

% end

plot(pp.crumbs(1:pp.crumb_idx-1, pp.X), pp.crumbs(1:pp.crumb_idx-1, pp.Y), 'o-');

function pp = drawWayPoints(pp)

fill(0, 0, 250);

% for (int i=0; i<NUM_WP; i++)

for i = 1:pp.NUM_WP

    x = calcDrawX(pp, pp.way_pts(i, pp.X));

    y = calcDrawY(pp, pp.way_pts(i, pp.Y));

    if i == pp.cur_way_pt

        % 현재 waypoint를 나타낸다.

        d = calcDraw(pp, pp.WP_DIST);

        filledCircle([x y], 5, 100, 'b');

        nofilledCircle([x y], d, 100, 'b');

        text(x, y, sprintf(' [%d] <= current', i));

    else

        filledCircle([x y], 5, 100, 'b');

        text(x, y, sprintf(' [%d]', i));

    end



end

function ret = calcDrawV(pp, d)

ret = d*pp.SCALE_V;



function ret = calcDraw(pp, d)

ret = d*pp.SCALE_P;

function ret = calcDrawX(pp, x)

ret = pp.X_OFF + calcDraw(pp, x);

function ret = calcDrawY(pp, y)

ret = pp.Y_OFF + calcDraw(pp, y);

function ret = calcDist(pp, x, y)

ret = sqrt((x*x + y*y));

function ret = minmax_th(x, xmin, xmax)

if x <= xmin

    ret = xmin;

elseif x >= xmax

    ret = xmax;

else

    ret = x;

end

 Make video

%% 프레임들로 동영상 만들기

clc;

clear all

close all

load pp_loop.mat;

%%

% 동영상 설정을 한다.

vidName = sprintf('videos/demp_pp_max_steer_%dE-2_vel_%d.avi', 100*pp.valmax, pp.sim_v);

frmRate = 10;

video = VideoWriter( vidName );

video.FrameRate = ( frmRate );

open( video );

% 사진을 불러와서 동영상을 만든다.

lists = dir('pics/*.png');

nr_pics = size(lists);

for i = 1:nr_pics

    img = imread( ['pics/' lists(i).name ]);

    img = im2double(img);

    writeVideo( video, img );

end

close( video );

fprintf('Video generated: [%s] \n', vidName);
